Pneumatic single floor clipper KOMPO KN 4S KE

Information
Video
Pneumatic single floor clipper KOMPO KN 4S KE

EQUIPMENT PURPOSE

KN-4S KE is designed for one-sided clipping of various fillers (minced meat, butter and other food fillers) in polyamide, cellulose and collagen bags and sleeve casings. If necessary, a twine loop is manually fed under the clip for hanging the loaves. With the help of a cut-off knife, the excess casing is cut off at the end of the loaf. The clipper is operated by one qualified operator.

Get cost



  • Type: Pneumatic
  • Clips type: E
  • Casing caliber: 40-120 mm







TECHNIKAL SPECIFICATIONS:



Model KN-4S KE
Clipping cycle, sec 2-3
Casing caliber, mm 40-120
Clips type * E
Cut-off knife automatic
Bags width, mm 500
Bags thickness, microns 60
Air consumption per working cycle, liters 1,2
Air pressure, mPa 0,5-0,6

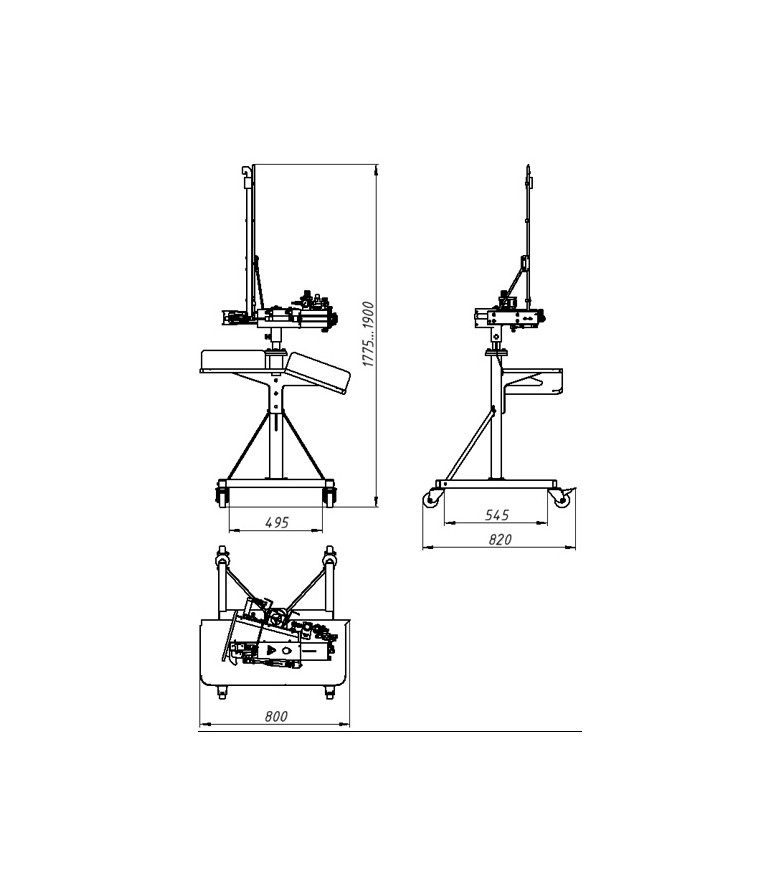

Dimensions, mm:

Length*Width*Height



800*820*1900

Net weight, kg 45

* Special order of KN-4S KE may be manufactured for any type of clips.



ADVANTAGES:

  • clipping various kinds of packaging materials with clip E;
  • packaging materials bunch formed by the pneumatic clamping mechanism;
  • pneumatic clipping drive;
  • automatic cut-off knife switch on and off feature;
  • clipping cycle 2 seconds;
  • air pressure up 5 to 6 mPa.
