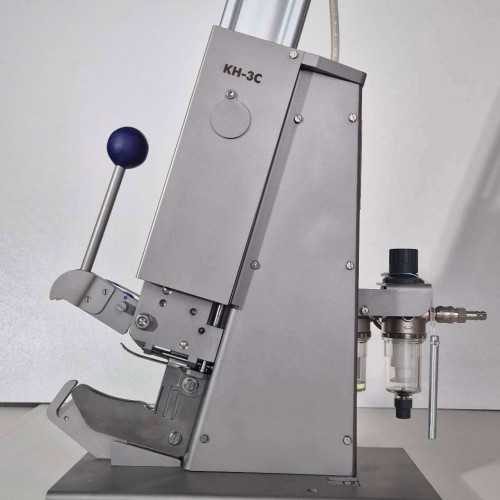

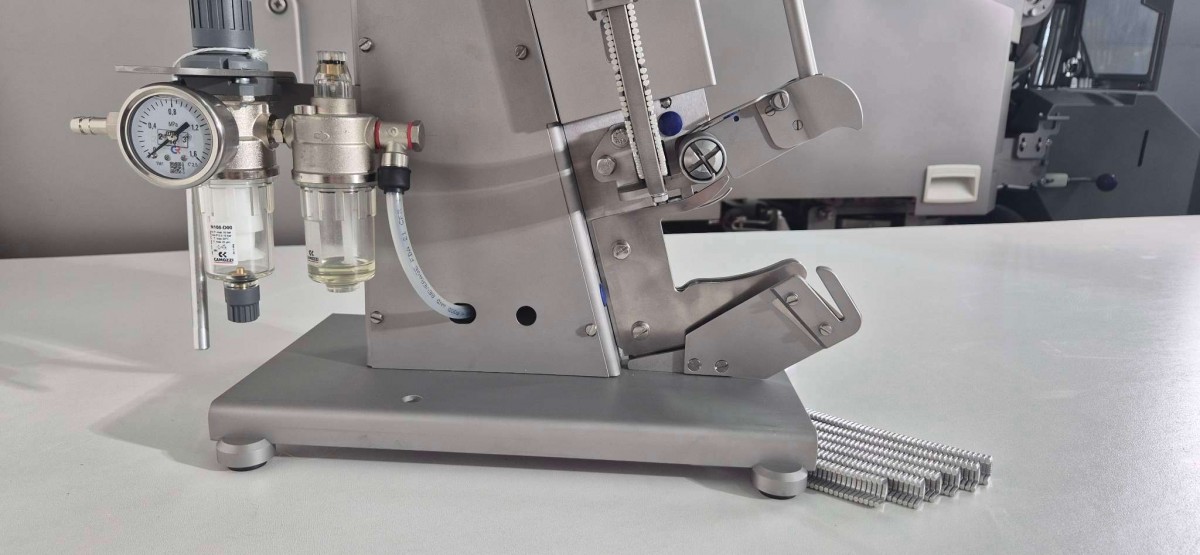

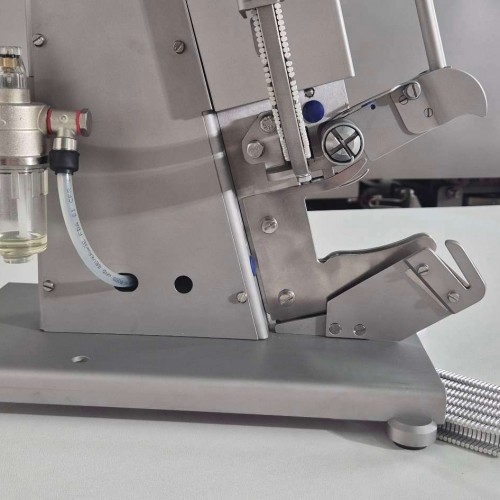

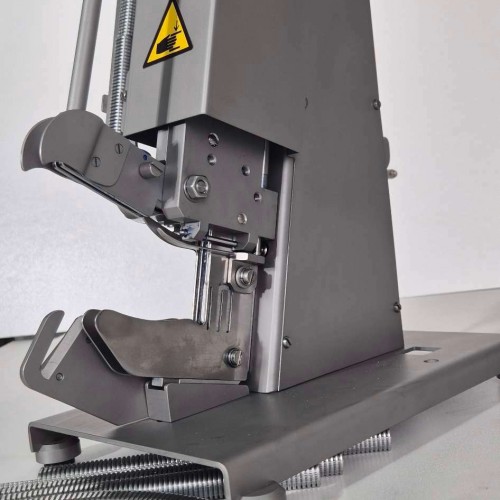

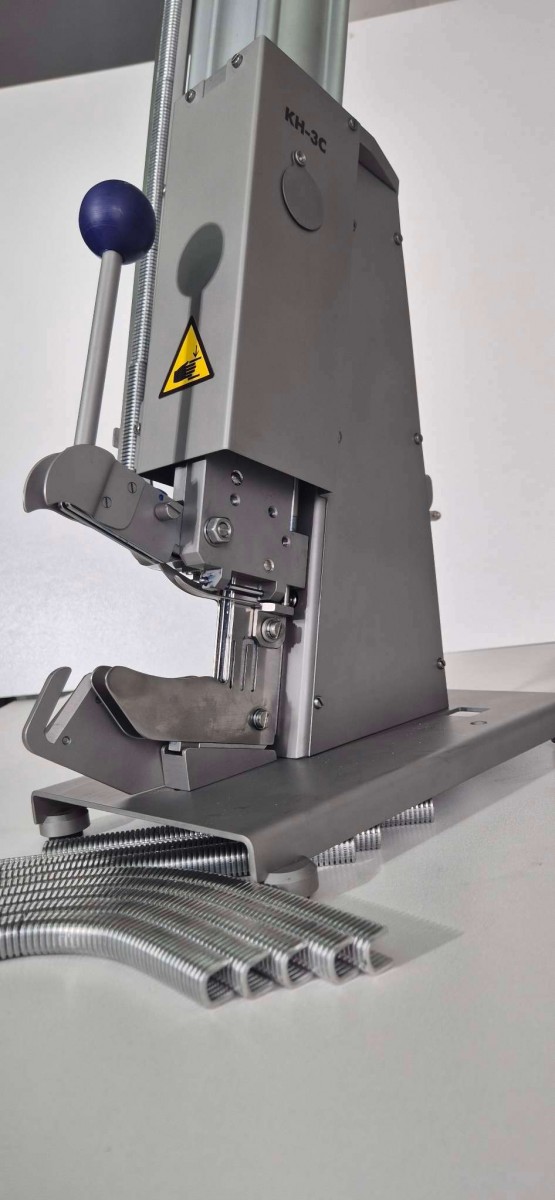

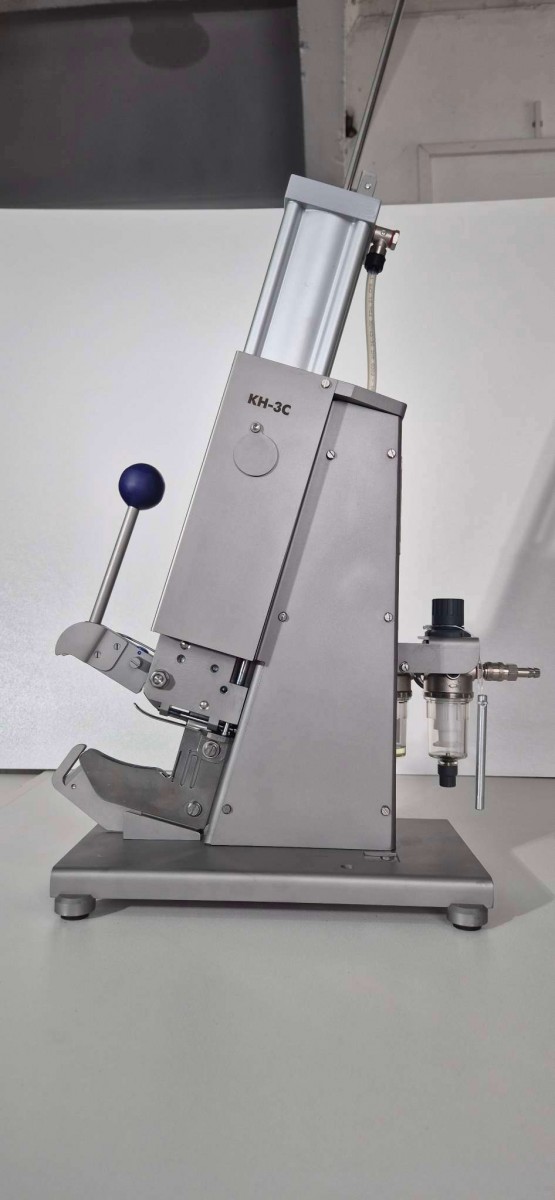

Pneumatic single clipper KOMPO KN 3S

Information
Video
Pneumatic single clipper KOMPO KN 3S

EQUIPMENT PURPOSE

KN-3S is designed for single clipping various fillers in polyamide, cellulose, collagen and fibrous casings and in paper bags and net casings.







Get cost



download documents:





  • Type:
    Pneumatic
  • Type of clips:
    B, BP
  • Casing caliber:
    40 - 120 mm




TECHNIcAL SPECIFICATIONS:

Model KN-3S
Clipping cycle, second 2
Casing caliber, mm 40 - 120
Clip type B, BP
Clamping mechanism  manual
Clipping mechanism  pneumatic
Loop feed manual
Version  table-top
Air consumption per working cycle, liters 0,6
Air pressure, mPa 0,4

Dimensions, mm:

Length*Width*Height



450*250*920

Net weight, kg 10



Special order of KN-3S clipper may be manufactured for any type of clips.





  • Polyamide casing
  • Fibrous casing
  • Cellulose casing
  • Collagen casing





ADVANTAGES:

  • the presence of a cutting knife to remove excess casing or bag;
  • universality, simple maintenance, reliability.
