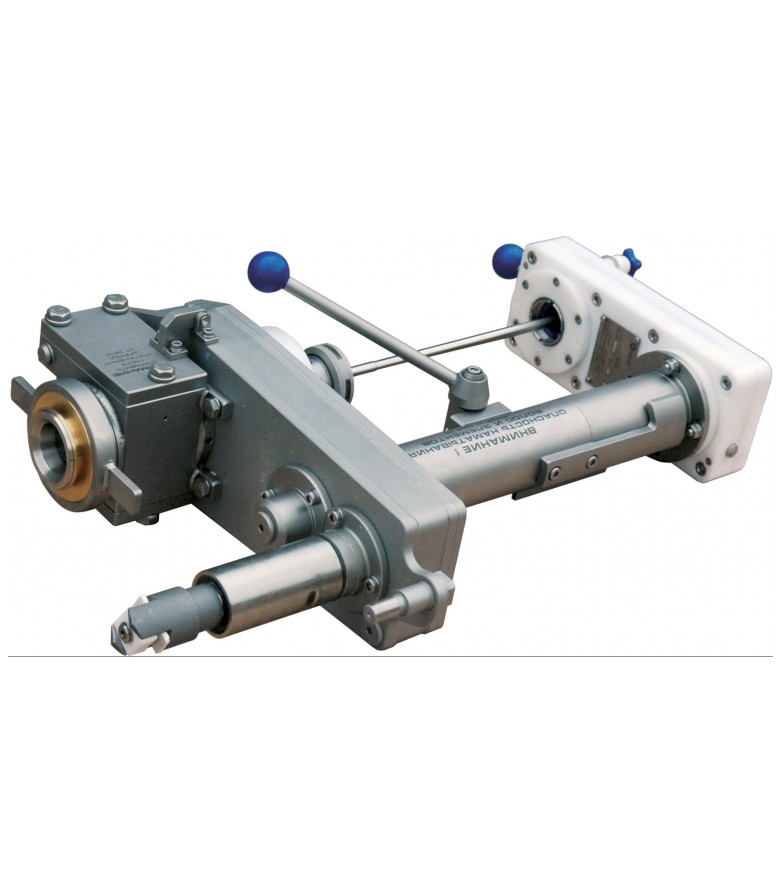

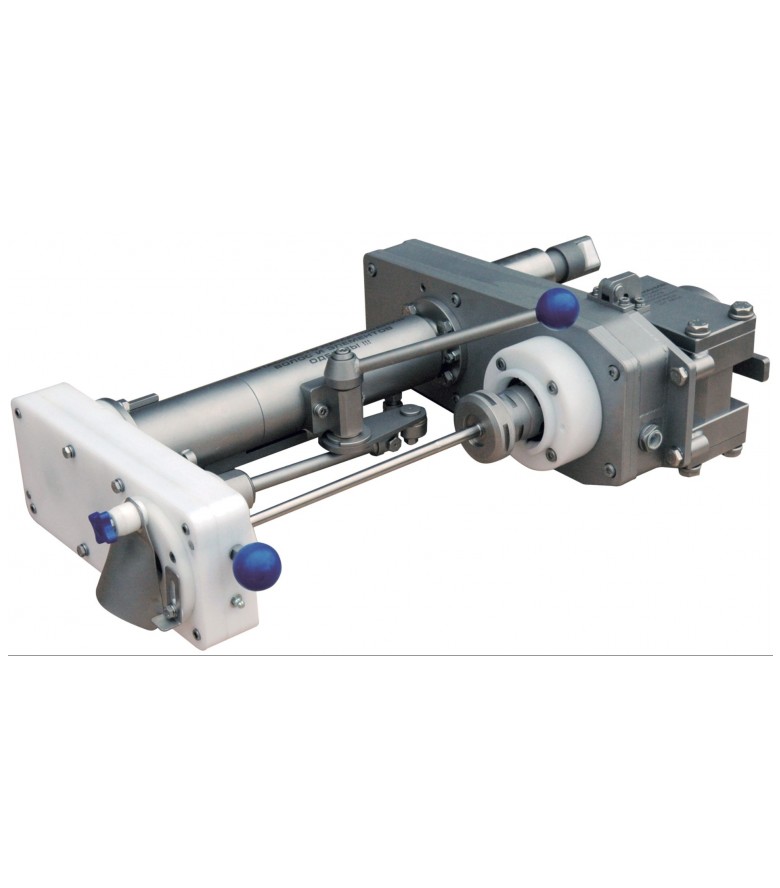

Linking device KOMPO
EQUIPMENT PURPOSE
Linking device KOMPO fills frankfurters and small sausage with minced meat and automatically twists the casing between the doses during a pause at the moment when minced meat feeding is stopped. Combined with KOMPO vacuum fillers, the linking device ensures high-quality filling, great presentation, and high output on various types of casings.
TECHNIcAL SPECIFICATIONS:
| Model | FPK | FPL | FPS | |
| Vacuum filler models | MINI 1500 | OPTI 2000 | OPTI 2000-01 | MAXI 3000-11/13 |
| Casing type |
artificial, collagen, cellulose, polyamide |
artificial, natural |
artificial, natural |
artificial,
natural |
| Dosage range adjustment, g | 25-120 | 25-120 | 25-120 | 25-120 |
| Installed power, kW | 0,55 | 1,1 | 1,1 | 1,5 |
| Output with artificial casing (dose 50 g), up to, kg/h | 570 | 1160 | 1160 | 1250 |
|
Filling tubes, mm hot dog Ø 10 hot dog Ø 12,5 frankfurter Ø 16,9 frankfurter Ø 20 |
order + + order |
order + + order |
order + + order |
+ + + order |
|
Dimensions, mm: Length*Width*Height |
835*645*245 |
835*645*245 |
835*645*245 |
835*645*245 |
| Net weight, kg | 52 | 52 | 52 | 52 |
